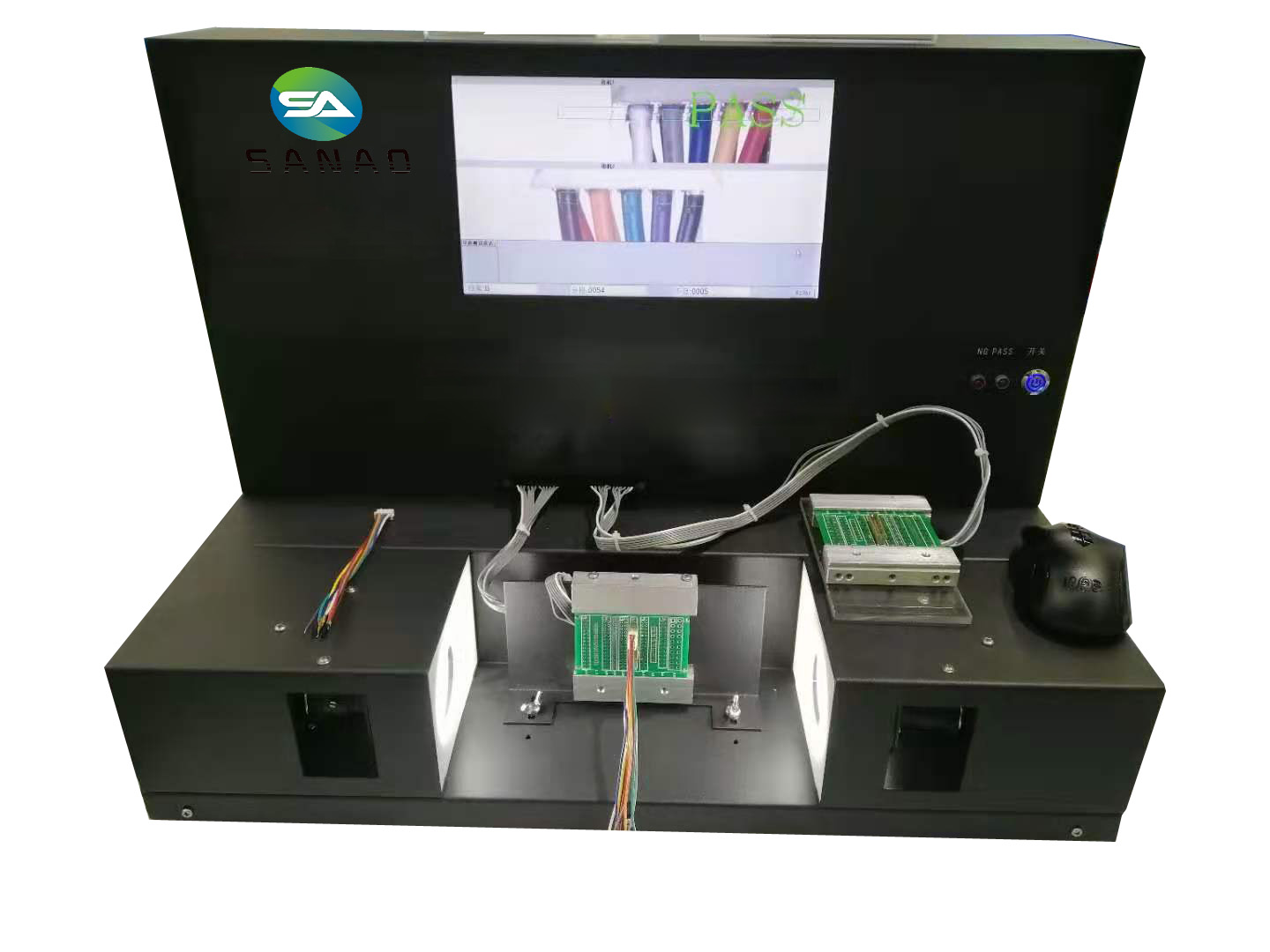

Automatic 2 line flat wire Color Sequence Detector with 64 dot tester

Short Description:

Model :SA-SC1030
Description: The wiring harness in the terminal connector usually needs to be arrangedaccording to a certain color sequence, manual inspection often causesmisdiagnosis or missed inspection due to eye fatigue. The wire sequenceinspecting device adopts vision technology and intelligent algorithms todetermine compliance with preset standards, automatically identify thecolor of the harness and mark the output, so

Send email to us

Product Detail

Product Tags

Product Video

Product Introduction

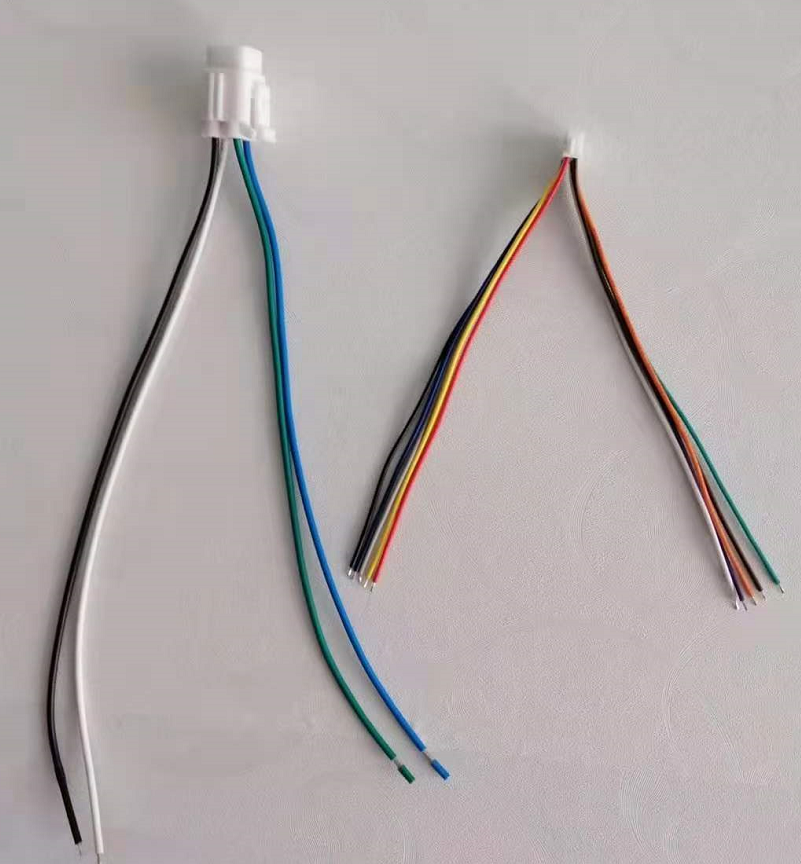

The wiring harness in the terminal connector usually needs to be arrangedaccording to a certain color sequence, manual inspection often causesmisdiagnosis or missed inspection due to eye fatigue. The wire sequenceinspecting device adopts vision technology and intelligent algorithms todetermine compliance with preset standards, automatically identify thecolor of the harness and mark the output, so as to make sure the wiringsequence is 100% correct. Connectivity testing and marking functions areoptiona,the model including short circuit and open circuit testing function

Test items:

(1) Automatically identify the color of each wire of the harness and systematically determine whether the position is correct.
(2) Automatically judge whether the wire terminal hole is inserted incorrectly or in place
(3) Automatically display the wire position of the bad line sequence, and give an audible alarm prompt NG
1.Automatically triggers after the material is stable, no need for foot switch or other IO input trigger
2.The detection accuracy is high, and even if characters are printed on the surface of the wire, the system can eliminate the interference of characters and accurately distinguish the color line sequence. Detection time <0.2s/pcs
3.You can place the harness to be tested in the inspection frame at will, without strict placement restrictions.
4.FM-9A can support I/O output, with small size and light weight
5.Integrated embedded device, low power consumption (<35W), anti-virus
6.Easy to use, easy to replace the material under test

Model	SA-SC1030
Trigger	Auto trigger
Detection accuracy	High precision
House connector width	Max.50mm
Row of house connector	Double row
Wire placement requirements	Arbitrarily placed
Support output	FM-9A supports I/O output
Features	Small size and light weight
Dimensions	30.5x26.5x6.5 cm
Weight	3.5kg
Functions	Identify wire color, determine correct position, determine wire terminal hole inserted in place, detect poor wire harness and alarm NG
