SUZHOU SANAO ELECTRONICS CO.,LTD.

Automatic Wiring Harness Color Sequence Detector with dot tester

Short Description:

Model :SA-SC1020
Description: The wiring harness in the terminal connector usually needs to be arrangedaccording to a certain color sequence, manual inspection often causesmisdiagnosis or missed inspection due to eye fatigue. The wire sequenceinspecting device adopts vision technology and intelligent algorithms todetermine compliance with preset standards, automatically identify thecolor of the harness and mark the output, so


Product Detail

Product Tags

Product Video

Product Introduction

Automatic Wiring Harness Color Sequence Detector with dot tester

Model :SA-SC1020

The wiring harness in the terminal connector usually needs to be arrangedaccording to a certain color sequence, manual inspection often causesmisdiagnosis or missed inspection due to eye fatigue. The wire sequenceinspecting device adopts vision technology and intelligent algorithms todetermine compliance with preset standards, automatically identify thecolor of the harness and mark the output, so as to make sure the wiringsequence is 100% correct. Connectivity testing and marking functions areoptiona,the model including short circuit and open circuit testing function

Test items:

(1) Automatically identify the color of each wire of the harness and systematically determine whether the position is correct.
(2) Automatically judge whether the wire terminal hole is inserted incorrectly or in place
(3) Automatically display the wire position of the bad line sequence, and give an audible alarm prompt NG
1.Automatically triggers after the material is stable, no need for foot switch or other IO input trigger
2.The detection accuracy is high, and even if characters are printed on the surface of the wire, the system can eliminate the interference of characters and accurately distinguish the color line sequence. Detection time <0.2s/pcs
3.You can place the harness to be tested in the inspection frame at will, without strict placement restrictions.
4.FM-9A can support I/O output, with small size and light weight
5.Integrated embedded device, low power consumption (<35W), anti-virus
6.Easy to use, easy to replace the material under test

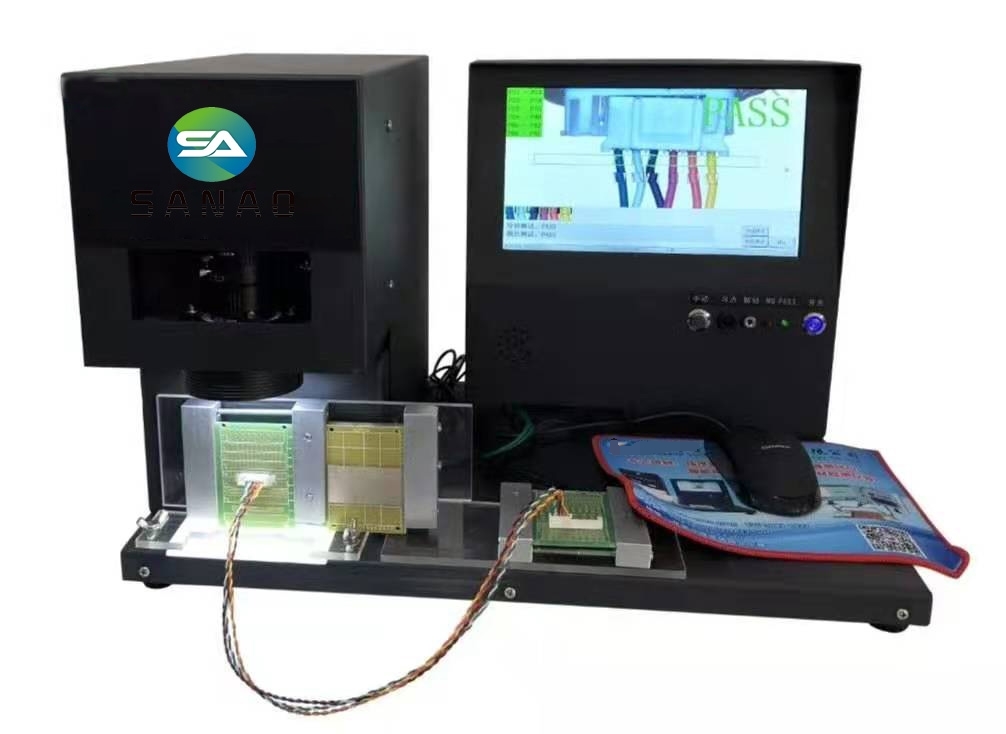

5fcde892bb84f7729
5fcde892bbaa33205

Model

SA-SC1020

Trigger

Auto trigger

Detection accuracy

High precision

House connector width

Max.50mm

Row of house connector

Single row

Wire placement requirements

Arbitrarily placed

Support output

FM-9A supports I/O output

Features

Small size and light weight

Dimensions

30.5x26.5x6.5 cm

Weight

3.5kg

Functions

Identify wire color, determine correct position,
determine wire terminal hole inserted in place, detect poor wire harness and
alarm NG

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

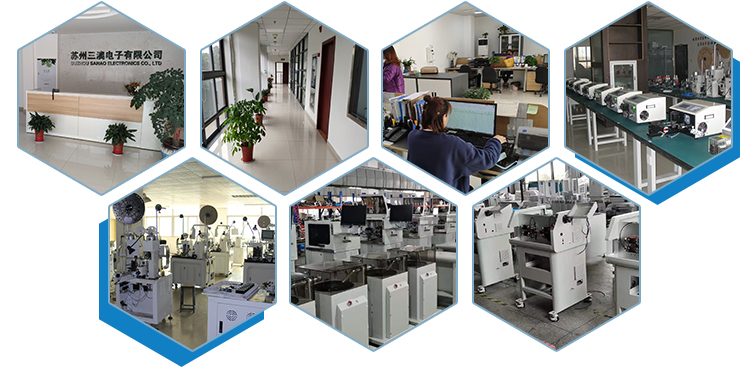

20201118150144_61901

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
