Automatic Terminal Cross Section Analysis System

Short Description:

Model :SA-TZ4
Description: The terminal cross-section analyzer is designed to detect the quality of crimping terminal, it includes the following modulesterminal fixture, cutting and grinding corrosion cleaning. cross-section image acquisition, measurement and data analysis.enerate data reports. It only takes about 5 minutes to complete the cross- section analysis of a terminal


Product Detail

Product Tags

Product Video

Product Introduction

The  is designed to detect the quality of crimping terminal, it includes the following modulesterminal fixture, cutting and grindingcorrosion cleaning. cross-section image acquisition, measurement and data analysis.enerate data reports. It only takes about 5 minutes to complete the cross-section analysis of a terminal

Feature

1.Mainly used on cross section testing after terminal crimping.
2.Core testing components is imported from Germany , with long service life.
3.Fast analysis technology of new terminal crimping;
4.The processing of cutting and grinding is in the same chamber, to ensure consistency of the direction of the cutting and grinding.
5.Efficiently saving time of operation and easy maintenance
6.The transmission technology of Japan made high precision ball screw can effectively ensure the cutting precision, and the grinding technology of Z-axis fine adjustment ;
7.With imported ultra thin cutting disk, it overcome the defect of deformed terminal
8.High measuring precision, stable performance, strong capability of resisting disturbance.
9. Brushless motor, low consumption, dual motor independent control, stepless debugging.
10.The rotary data collecting system, which can automatically choose the related speed for the different terminals.

Model

SA-TZ4

Terminal section analysis

Japan imported segmentless zoom optical system

Total video magnification

30~312X

wire range

0.01~70mm2 (Optional 0.01m~120mm2)

Power supply

100~240VAC, 50/60Hz

Imaging system

Japanese industrial HD video system 5 million

Cut blade specifications

Dia.110X0.5mmGermany imported, delicate and durable)

Abrasive sandpaper

1200#

Standard fixture

0.01~70mm2

Special-grade high-precision reference ruler

0.01/10mm

Terminal corrosion

Liquid cleaning (5S completed)

Lighting source

All white adjustable LED lighting device

Dimensions

W500XD350XH350

Feature

Fully automatic precision integrated automatic cutting and grinding equipment, German motor, X-axis and Y-axis stroke control using Japanese Panasonic servo motor. Adopt Japanese Mitsubishi PLC controller. Professional terminal section analysis software with encryption lock and CD

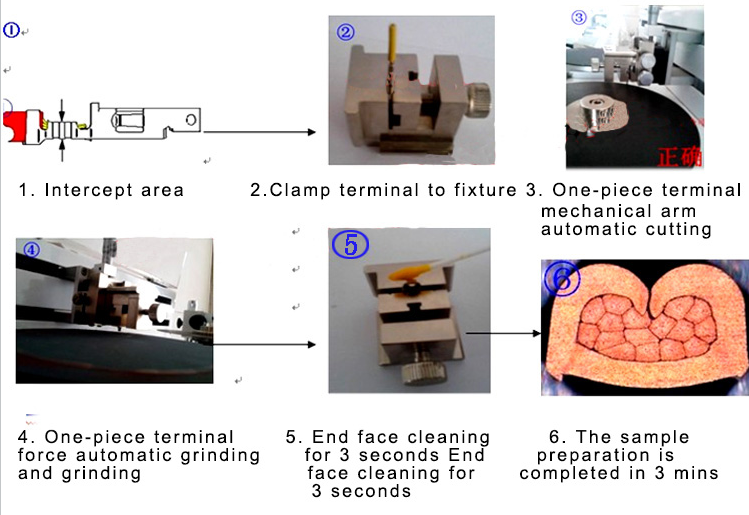

20201204144808_50290
