Introduction
In modern wire harness manufacturing, especially for automotive electronics, medical devices, LiDAR, and 3C consumer electronics, traditional wire processing faces unavoidable bottlenecks: complicated procedures, easy wire core damage, high defective rates, and low production efficiency. To solve these industry pain points, IDC (Insulation Displacement Connection) crimping technology has become a revolutionary wire termination solution and gradually replaced conventional stripping and crimping processes.
IDC Insulation Displacement Crimping Technology is an advanced wire harness termination technology that enables precise electrical connection without pre-stripping wire insulation. It has redefined the standard of precision wire processing and is now the preferred process for high-reliability, high-efficiency mass production in the global harness manufacturing industry.
1. How Does IDC Insulation Displacement Crimping Work?
Unlike traditional crimping that requires four core steps (wire stripping, alignment, crimping, and quality inspection), IDC technology integrates all procedures into one-step molding, greatly simplifying the production flow.
The working principle is straightforward and precise: professional sharp crimping blades are adopted to accurately pierce the outer insulation layer of the wire, make direct and close contact with the internal metal conductor, and complete stable crimping and fixation in one press. This metal-to-metal direct connection structure eliminates the hidden dangers of poor contact caused by incomplete stripping or conductor deformation in traditional processes.
Equipped with high-precision mechanical control system, the whole process takes only 5 seconds for one set of precise connection, and supports synchronous forming of 2 to 4 wires, realizing efficient and standardized wire termination.
2. Core Advantages of IDC Crimping Technology (vs Traditional Process)
Traditional wire harness processing relies heavily on manual operation and multi-step mechanical processing, with a defective rate as high as 1.2%. In contrast, optimized IDC insulation displacement crimping technology achieves comprehensive upgrades in efficiency, quality, cost and flexibility, solving multiple industry pain points at one time.
2.1 Ultra-high Efficiency, Greatly Save Labor Costs
Eliminate the pre-stripping process completely, avoiding repeated positioning and debugging. The one-key crimping operation reduces manual intervention to the minimum. The overall wire harness termination efficiency is increased by 60% compared with traditional processes. For medium and large batch production, it can save a lot of labor and time costs for enterprises.
2.2 Zero Wire Damage, Ultra-low Defective Rate
Traditional wire stripping often causes conductor scratching, breakage and oxidation exposure, leading to poor conductivity and short service life. IDC technology realizes non-destructive termination of wires. Combined withforce-displacement closed-loop monitoring system and CCD visual inspection module, it automatically checks wire color, insertion depth and crimping accuracy. The product defective rate is controlled below 0.05%, far lower than the industry average.
2.3 Strong Compatibility, Flexible Production Adaptation
The mature IDC crimping solution supports full-spec wires of AWG#18 to AWG#30, and is compatible with 90° and 180° connectors. The modular design realizes fast mold switching within 30 minutes, covering 2-20 pin positions without fixture replacement. It can flexibly adapt to small-batch customized orders and stable mass production, perfectly matching the diversified production needs of modern harness factories.
2.4 Stable Conductivity, Long-term Operational Reliability
Adopting metal-to-metal double-point connection design, the contact resistance is lower and the conductivity is more stable. It can resist high-frequency vibration and temperature changes, fully meeting the long-term reliability standards of automotive electronics, industrial control, medical equipment and other harsh application scenarios.
3. Wide Application Scenarios of IDC Crimping Technology
With its superior performance in efficiency, precision and stability, IDC insulation displacement crimping technology has been widely used in high-precision wire harness processing fields worldwide:
•New Energy Automotive Electronics: Suitable for battery harnesses, on-board camera wiring, headlight sensor harnesses, supporting high-standard batch production and improving enterprise profit margins.
•3C Consumer Electronics: Efficiently process precision flexible flat cables, solve the pressure of short-cycle customized orders, and balance production speed and product quality.
•Industrial Automation: Adapt to sensor signal wiring of automated production lines. The compact equipment structure saves 80% of factory floor space, helping enterprises optimize production layout.
•Medical Devices & LiDAR: Meet the ultra-high precision and stability requirements of precision electronic wiring, complying with international medical and automotive industry certification standards.

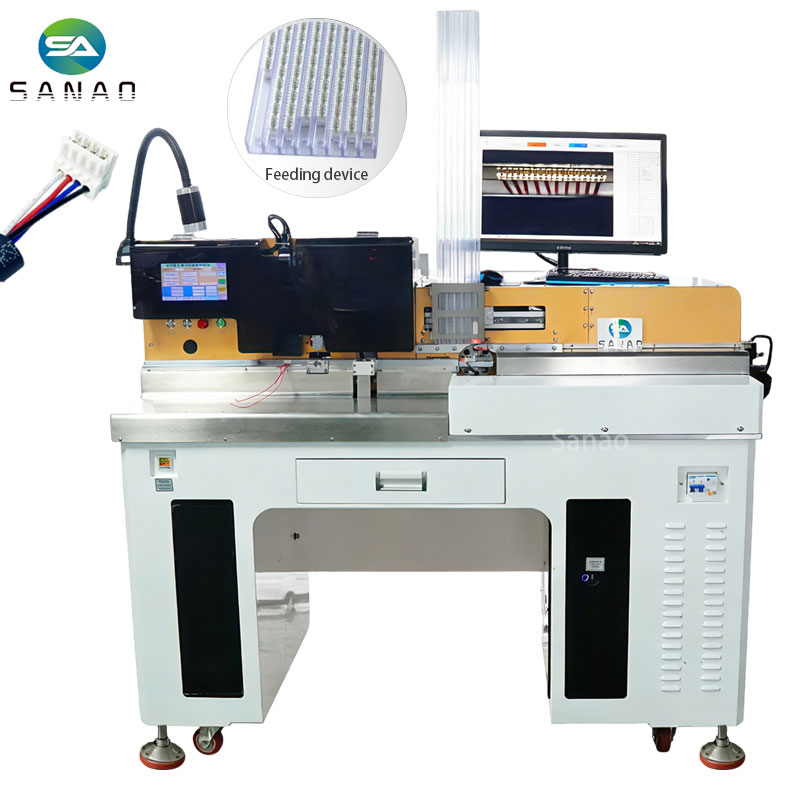

4. Why Choose Professional IDC Insulation Displacement Crimping Machine?
Many manufacturers still use traditional separate equipment such as stripping machines and crimping machines, which have high equipment investment costs, low integration and difficult quality control. Our professional IDC insulation displacement connector crimping machine integrates innovative processes, realizing multiple value upgrades:
One machine replaces three traditional special equipment, reducing equipment investment cost by 60%. It supports hybrid processing of IDC piercing crimping, traditional crimping and tin dipping. The process switching takes only 5 minutes, and new employees can master the operation in 2 hours, greatly reducing enterprise training and trial production costs.
5. Conclusion
As the wire harness manufacturing industry moves toward high precision, high efficiency and low cost, IDC insulation displacement crimping technology has become an indispensable core process for modern harness factories to enhance competitiveness. It completely abandons the backward multi-step processing mode of traditional technology, and realizes qualitative leaps in production efficiency, product yield and production flexibility.
If you are looking for a high-efficiency, low-defect and cost-saving wire harness processing solution, our IDC insulation displacement crimping equipment will be your optimal choice to upgrade your production line and stand out in the fierce market competition.
FAQ
Q1: Is IDC crimping suitable for fine wires?
Yes. Our IDC crimping system perfectly supports AWG#18 to AWG#30 fine wires, covering most precision wiring scenarios in electronics and automotive industries.
Q2: Does IDC technology damage wire conductors?
No wire core damage occurs. The precision blade structure only pierces the insulation layer and fits closely with the conductor, realizing non-destructive and stable connection.
Q3: Can IDC equipment adapt to mass production?
Absolutely. It supports synchronous molding of multiple wires and continuous stable operation, which is fully applicable to medium and large batch standardized production.
