Hydraulic Hexagon crimping machine with servo motor

Short Description:

Max.95mm2 ,Crimping force is 30T, SA-30T Servo motor hexagon lug crimping machine, Free change the crimping mould for different size cable , Suitable for crimping Hexagonal ,Four side , 4 -Point shape ,It’s Greatly widely use in power cable lug crimping , It Improved product value,crimping speed and save labor cost.

Send email to us

Product Detail

Product Tags

Product Video

Product Introduction

Hydraulic Hexagon crimping machine with servo motor

Advantage

1. Machine with servo motor , So running more Precise and stability.
2. PLC control system :Easy to operate , different change crimping size on machine.

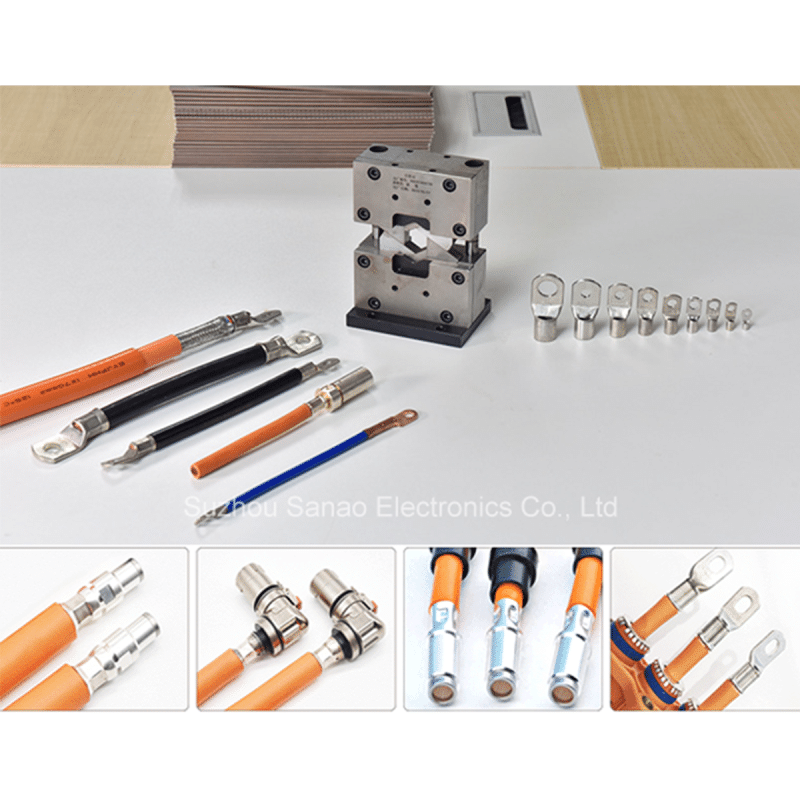

3. Hexagonal ,Four side mold : Free change crimping mold for different size cable.
4. The position can be adjusted for different square wire.

Products Parameter

Model	SA-30T	SA-50T
Crimping force	30T	50T
Stroke	30mm	30mm
Crimping range	2.5-95mm2	2.5-300mm2
Capacity	600-1200pcs/h	600-1200pcs/h
Operate mode	Touch screen,mould auto adjust	Touch screen,mould auto adjust
Start mode	Manual/Pedal	Manual/Pedal
Power rate	2300W	5500W
Power	220V	380V
Machine Dimension	7507201400mm	7507201400mm
Machine weight	340kgs	400kgs
