Automatic Single Insulated Terminal crimping machine

Short Description:

SA-F2.0T Single Insulated Terminal crimping machine with automatic feeding function,It is design for crimping loose / Single terminals ,vibration plate Automatic Smooth feeding terminal to crimping machine. We Just need manual put the wire into terminal , then press foot switch ,our machine will start crimping terminal automaticly , It best solves the problem of single terminal difficult crimping problem and Improved wire process speed and save labor cost.


Product Detail

Product Tags

Product Video

Product Introduction

SA-F2.0T Single Insulated Terminal crimping machine with automatic feeding function,It is design for crimping loose / Single terminals ,vibration plate Automatic Smooth feeding terminal to crimping machine. We Just need manual put the wire ento terminal , then press foot switch ,our machine will start crimping terminal automaticly , It best solves the problem of single terminal difficult crimping problem and Improved wire process speed and save labor cost.

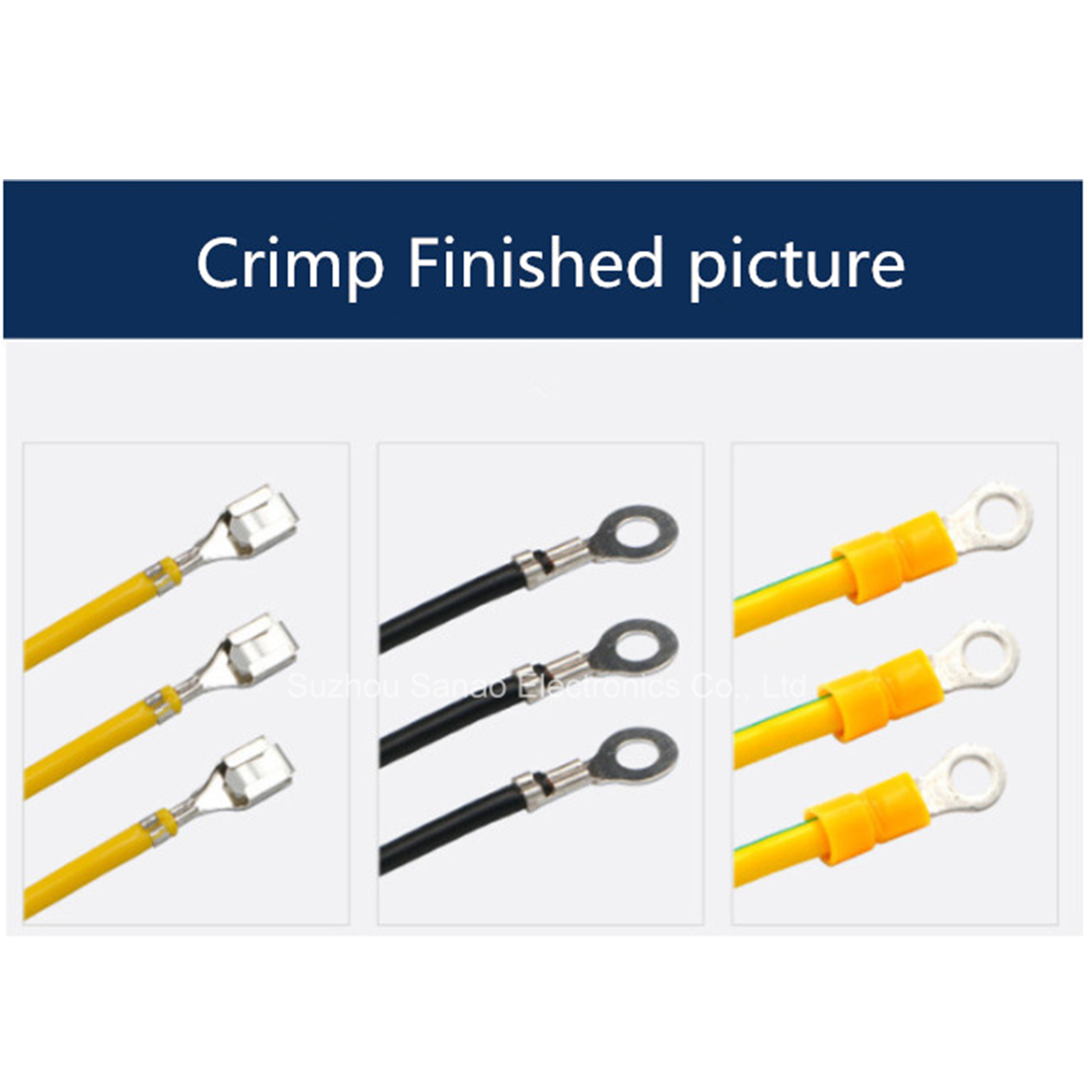

Crimp picture ---shuiying

Advantage

1. Microcomputer chip control : personalized program design, safe and reliable operation;
2. Centrifugal vibration feeding : frequency control of motor speed, accurate positioning of cylinder, and standard riveting;
3. Motor: Copper core stepper motor with high precision, low noise and longer service life.
4. OPT Applicator : it’s applicable tovertical, horizontal mould, 4 side mould etc .
5. Full English Display : Easy to operate.
6. Warranty : Machine with one year warranty, And free provide sample test and operate video guide.

Products Parameter

Model

SA-F2.0T

Crimping force

2.0T

Dimensions

Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)

Power supply

AC 220V/50Hz

Weight

about 140KG-170KG

Power consumption

Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W

Crimping capacity

20Kn

Stroke of slider

35mm (40mm)

Crimping frequency

120 times/min

Closing height

26mm; Closing height adjustment 10mm
