Four-core sheathed power cable stripping crimping machine

Short Description:

SA-HT400 Design for 3-4 core sheathed power cable stripping crimping machine ,Machine can cutting Multi core into different length, The length drop is 0-200mm,stripping and crimping different terminal , you only need put the wire into machine fixture , Machine will cutting stripping and crimping different terminal automatically , This machine is usually used in the power cable processe,which can greatly improve working efficiency and   and save labor


Product Detail

Product Tags

Product Video

Product Introduction

Four-core sheathed power cable stripping crimping machine

SA-HT400 Design for 3-4 core sheathed power cable stripping crimping machine ,Machine can cutting Multi core into different length, The length drop is 0-200mm,stripping and crimping different terminal , you only need put the wire into machine fixture , Machine will cutting stripping and crimping different terminal automatically , This machine is usually used in the power cable processe,which can greatly improve working efficiency and   and save labor

Advantage

1. Mitsubishi servo: 3 servo motors for the whole machine , so that the positions of wire feeding, peeling and crimping are very accurate

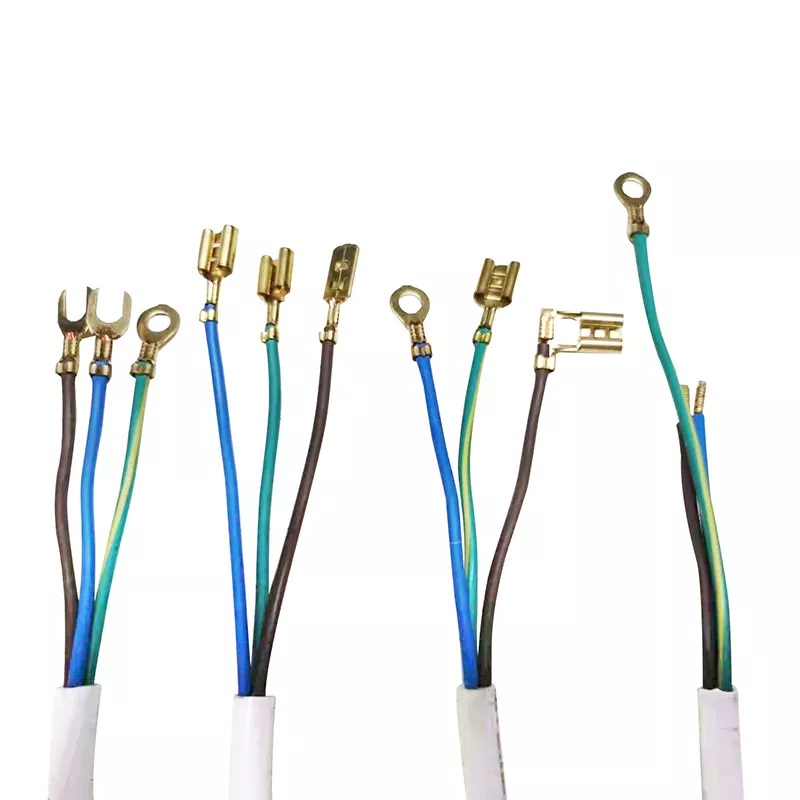

2. Applicable terminals: insulation ring Terminal ,87/250 terminal , flag terminal or  pre-insulation Terminal ,horizontal terminal can be modified
3. English Touch screen operation, Cutting length and stripping length can directly setting on machine,Very easy to operate
4. Different cutting length: Machine can do different cutting length of Multi core, The length drop is 0-200mm

Products Parameter

Model SA-HT400
Capability 4-core cable: 550-600pcs/h
3-core cable: 800-900pcs/h
Applicable wire range 3-core or 4-core sheathed cable
Cutting length difference 0-200mm
Cutting tolerance within ±0.1(0.1+0.005*L)mm, L=cutting length
Stripping length 0-15
Crimping force 3T
Crimping mode frequency converter drive, AC motor
Power supply and air pressure 3 phase 220V, 50/60Hz,0.5Mpa, 150(ANR)/min
Dimensions L1500mm x W970mm x H1700mm
