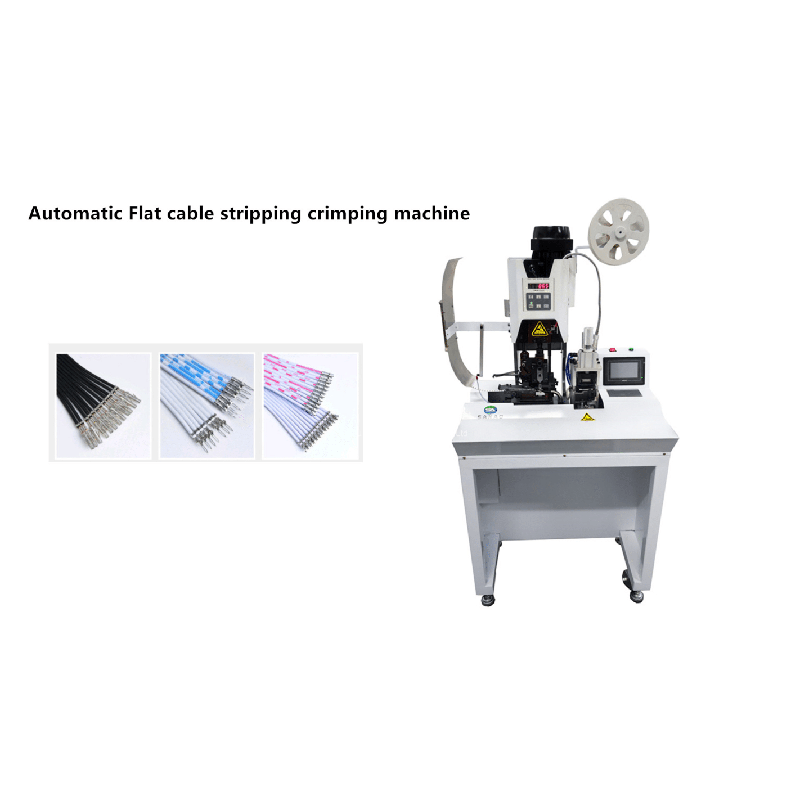

1-12 pin Flat cable strip crimp terminal machine

Short Description:

SA-AH1020 is 1-12 pin Flat cable strip crimp terminal machine ,It’s stripping wire and crimping terminal at one time , Different terminal Different applicator/crimping mold , Machine Max. Crimping 12 Pin flat cable and the machine operate is very simple , For example, crimping 6 pin cable, Directly setting 6 on display ,Machine will crimping 6 times on at time , and It’s Greatly Improved wire crimping speed and save labor cost.


Product Detail

Product Tags

Product Video

Product Introduction

1-12 pin Flat cable strip crimp terminal machine

SA-AH1020 is 1-12 pin Flat cable strip crimp terminal machine ,It’s stripping wire and crimping terminal at one time , Different terminal Different applicator/crimping mold , Machine Max. Crimping 12 Pin flat cable and the machine operate is very simple , For example, crimping 4 pin cable, Directly setting 4 on display ,Machine will crimping 4 times on at time , and It’s Greatly Improved wire crimping and save labor cost.

Advantage

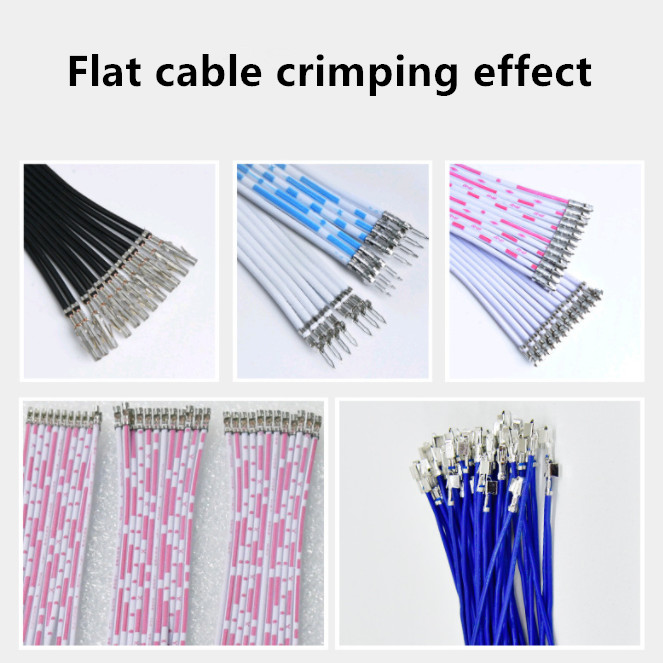

1. Design for 2-12 pin flat cable , Stripping crimping multi core at one time , save labor cost .
2. Adopt advanced frequency conversion technology control, energy saving and environmental protection.
3. Stripping cylinder drive, High-speed and accurate positioning.
4. Suitable for Different various terminals, Just change the applicator for different terminal.
5. Easy operate English Display , For example, crimping 4 pin cable, Directly setting 4 on display ,Machine will crimping 4 times on at time.

Products Parameter

Model SA-SH1010 SA-SH1020
Available Wire Size 5 cores,min.0.75mm; 8 cores, min.0.5mm; 12 cores, min.0.3mm Inner cores 0.8-4mm
Available Cores Number 1-12 cores 1-12 cores
Cores Stripping Length 1-7mm 1-7mm
Jacket stripping Length ≥32mm 2-4 cores, min 25mm; 5-10 cores, min 40mm
Crimp Force 2Ton 2Ton
Production Rate 700-800 pieces/hour (6 cores) 3000-5000 terminal/h
Air Connection 0.4-0.7 Mpa 0.4-0.7 Mpa
Power supply 110/220VAC,50/60Hz 110/220VAC,50/60Hz
