Automatic wire stripping machine 0.1-4mm²

Short Description:

This is an economical computer wire stripping machine which is sold worldwide, there are several models available, SA-208C suitable for 0.1-2.5mm², SA-208SD suitable for 0.1-4.5mm²


Product Detail

Product Tags

Product Video

Product Introduction

SA-208SD This is an economical computer wire stripping machine which is sold worldwide, there are several models available, SA-208C suitable for 0.1-2.5mm², SA-208SD suitable for 0.1-4.5mm², please refer to the machine parameters.

English keypad control panel, all parameters can be set directly from the panel, such as cut length, stripping length, knife value and stripping speed, after a simple setup, turn on the start button and the machine can be fully automatic production, the machine is easy to operate.

With 99 different programs for different products, you only need to set them once and then click on the corresponding program next time to further simplify the production process.

The machine is divided into conduit jumping or not jumping, if you need to peel the length of long need to buy the conduit jumping model.

Rotate the wire feed wheel button to adjust the upper and lower wheel gap adjustment, rotate in the direction of the number of large, the gap between the feed wheel increases, to the direction of the number of small rotating gap decreases. Simple operation

Advantage

1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

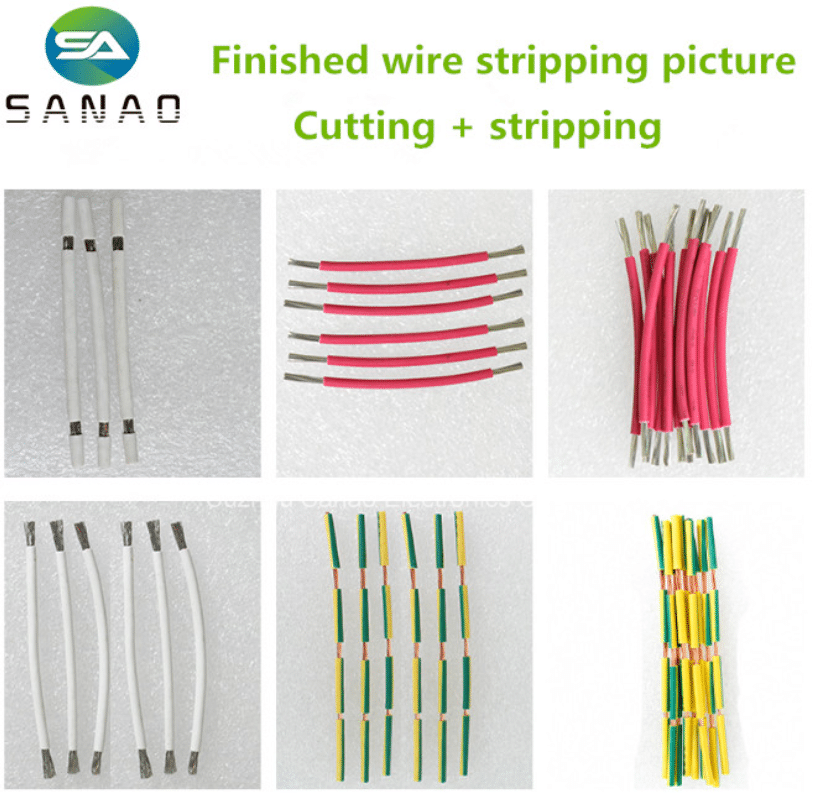

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Product Parameters

Model

SA-208C

SA-208SD

SA-208E

Conductor Cross-Section

0.1-2.5mm²

0.1-4.5mm²

0.1-8mm²

Stripping Length

Head length : 0-35mm

Tail length : 0-15mm



Head length : 0-35mm

Tail length : 0-15mm



Head length : 0-35mm

Tail length : 0-15mm



Cutting Length

1-9999mm

1-9999mm

1-9999mm

Cutting Length Tolerances

≤ (0.002*L)mm

≤ (0.002*L)mm

≤ (0.002*L)mm

Intermediate Stripping

Max 11 sections

Max 11 sections

Max 11 sections

Conduit Diameter

Φ6mm

Φ6mm

Φ10 mm

Display Screen

Chinese / English LCD Screen

Production Rate

3000-8000pcs/h

3000-8000pcs/h

3000-5000pcs/h

Drive Method

2 wheels drive

4 wheels drive

4 wheels drive

Power

160W

200W

200W

Power Supply

110/220VAC, 50/60Hz
