SUZHOU SANAO ELECTRONICS CO.,LTD.

1.5T / 2T mute terminal crimping machine

Short Description:

SA-2.0T,1.5T / 2T mute terminal crimping machine ,our models ranging from 1.5 to 8.0T,Different terminal different applicator or blades ,so Just change the applicator for different terminal ,Machine have automatic feeding terminal function , Just put the wire ento terminal , then press foot switch ,our machine will start crimping terminal automaticly , It’s Greatly Improved stripping speed and save labor cost.


Product Detail

Product Tags

Product Video

Product Introduction

1.5T / 2T mute terminal crimping machine

SA-2.0T,1.5T / 2T mute terminal crimping machine ,our models ranging from 1.5 to 8.0T,Different terminal different applicator or blades ,so Just change the applicator for different terminal ,Machine have automatic feeding terminal function , Just put the wire ento terminal , then press foot switch ,our machine will start crimping terminal automaticly , It’s Greatly Improved stripping speed and save labor cost.

Advantage

1. Motor: Copper core stepper motor with high precision, low noise and longer service life.

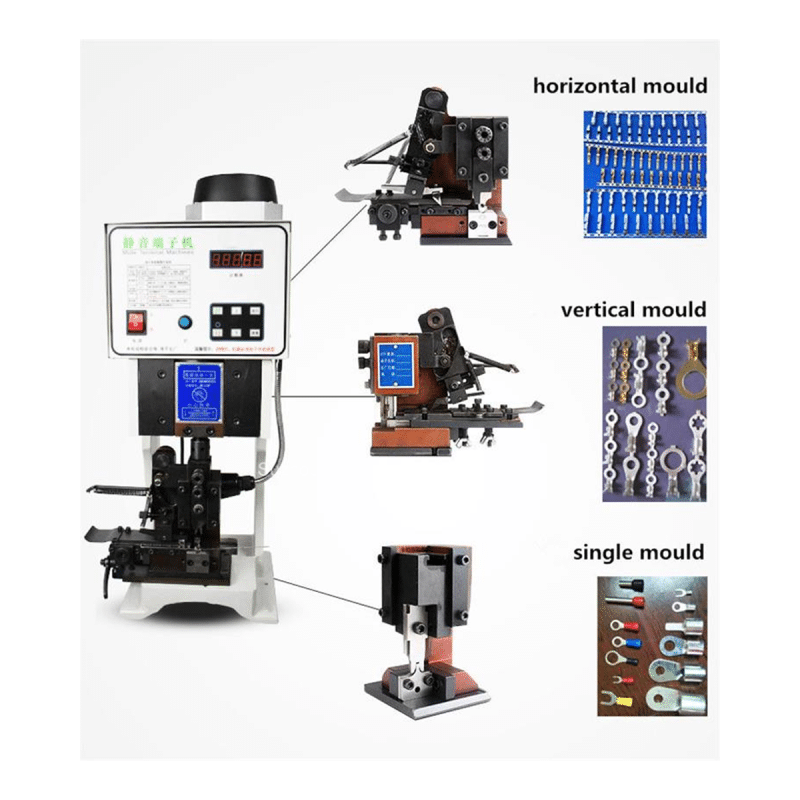

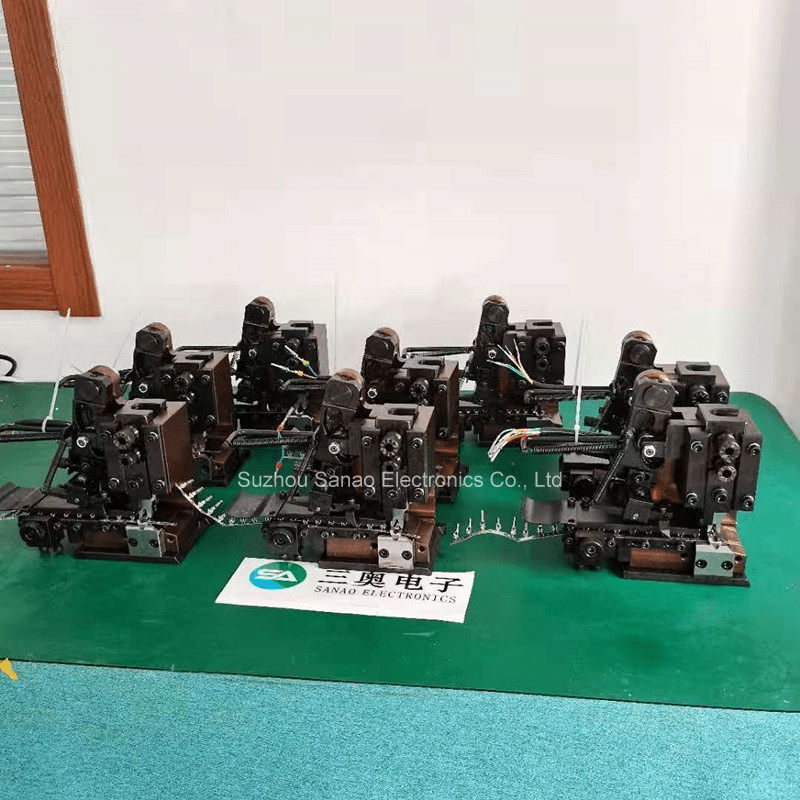

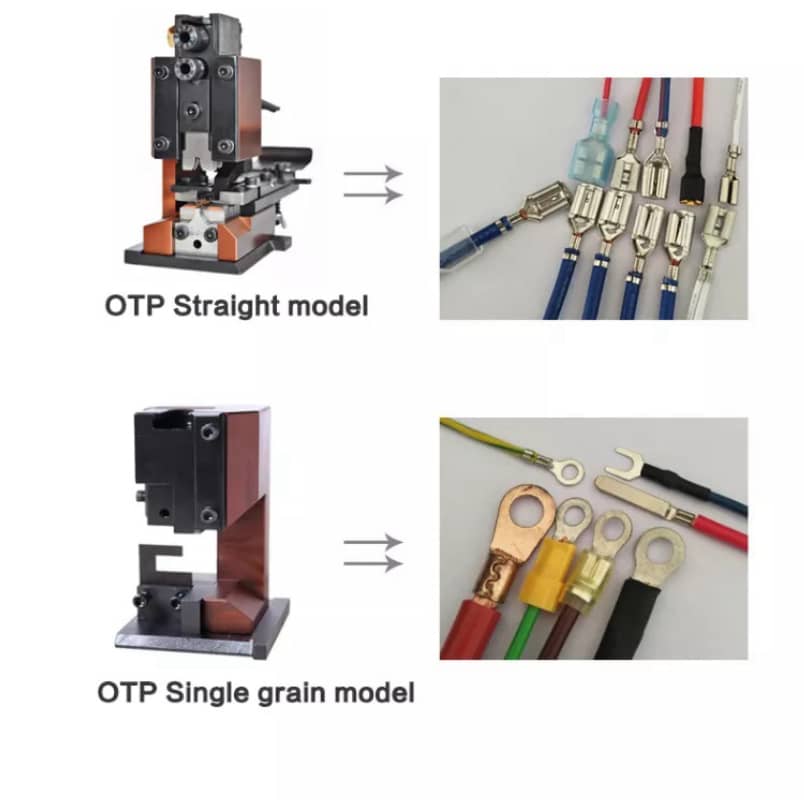

2. OPT Applicator : One machine is suitable for various terminals, Just change the applicator for different terminal.
3. Full English Display : Easy to operate .
4. Warranty : Machine with one year warranty, And free provide sample test and operate video guide .

Products Parameter

Model

SA-1.5T

SA-2.0T

SA-3.0T

SA-4.0T

SA-6.0T

SA-8.0T

Crimp Force

1.5Ton

2.0Ton

3.0Ton

4.0Ton

6.0Ton

8.0Ton

Stroke

30mm (custom avaliable)

Power Supply

110/220VAC,50/60Hz

Power

550W

750W

1100W

1500W

2200W

3000W

Weight

38kg

55kg

59kg

96kg

165kg

169kg

Dimensions

22*25*60cm

24*27*65cm

24*27*65cm

31*21*75cm

38*31*85cm

38*31*85cm
