SUZHOU SANAO ELECTRONICS CO.,LTD.

Semi-Automatic USB cable twisting tie machine

Short Description:

Model : SA-T30
Description: Model : SA-T30This machine suitable for winding tying AC power cable, DC power core, USB data wire, video line, HDMI high-definition line and other transmission lines , One machine can coil 8 and round both shape , This machine have 3 model , please according tying diameter to choose which model is best for you .


Product Detail

Product Tags

Product Video

Feature

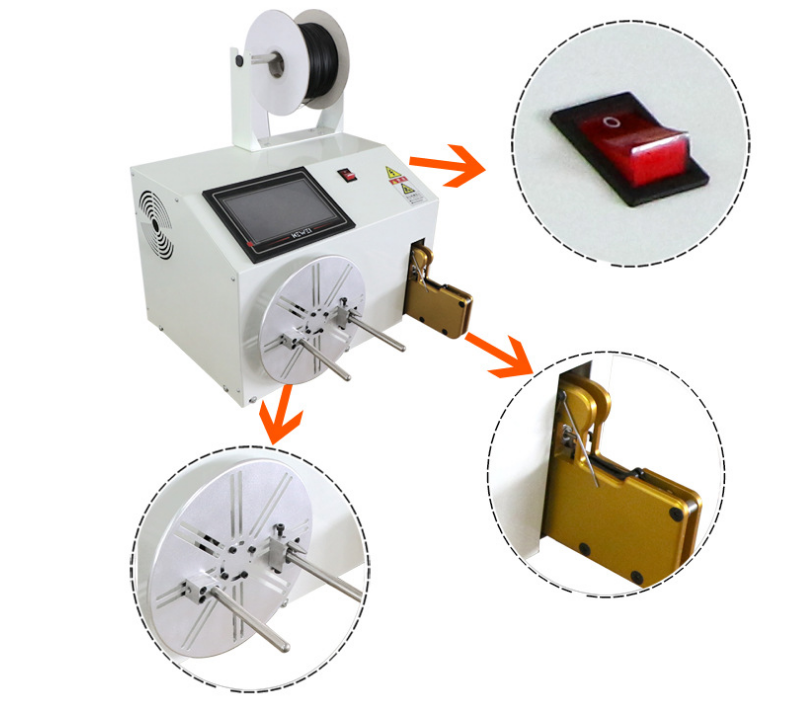

SA-T30 This machine suitable for winding twisting AC power cable, DC power core, USB data wire, video line, HDMI high-definition line and other transmission lines by wrapping glue iron core twisted into bundles, and can also be used for other use of coated iron core, such as clothes rack and other industries. The employee only needs to fix the thread head, and the foot switch realizes the winding. After the end is removed, it is automatically tied to the tie line. The whole process takes only 4-5 seconds.

Advantage

1.Automatically sensing to tie;

2.Feasible to adjust winding speed, winding circles, and tying wire length;

3.Automatically output counting

4.Saving labor cost;

5.Visual human-computer interface and easy to operate;

6.Automatically feeding for tying line;

7.Low cost and high efficiency.

Machine parameter

Model

SA-T40

SA-T35

SA-T30

Winding Length

50-230mm (can adjustable )

50-200mm (can adjustable)

Tying Diameter

Φ25-65mm

Φ10-45mm

Φ5-35mm

Cable Tie Length

130-260mm

90-200mm

60-140mm

Winding Speed

30 speed options (Can be set)

Number of Windings

1-999 cycles(Can be set)

Power

80W

size

55*56*47cm

weight

39KG
