Pneumatic Induction Stripper Machine SA-2015

Short Description:

Processing wire range: Suitable for 0.03 – 2.08 mm2 (32 – 14 AWG),SA-2015 is Pneumatic Induction cable Stripper Machine that Stripping inner core of sheathed wire or single wire , It is controlled by Induction and stripping length is adjustable.If the wire touches the induction switch, the machine will peel off automatically, It has the advantage of simple operation and fast stripping speed, It’s Greatly Improved stripping speed and save labor cost.


Product Detail

Product Tags

Product Video

Product Introduction

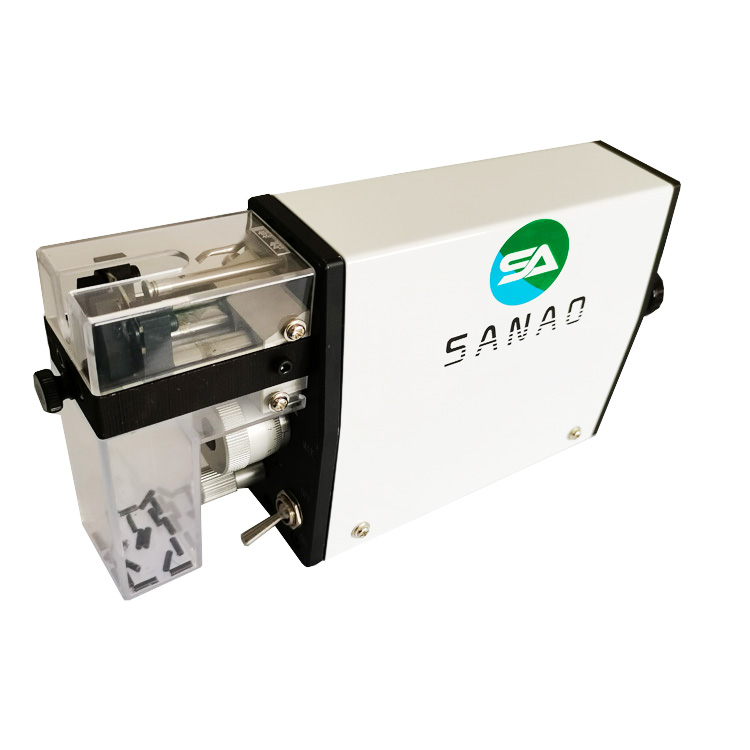

Pneumatic Induction Stripper Machine

SA-2015

Processing wire range: Suitable for 0.03 – 2.08 mm2 (32 – 14 AWG),SA-2015 is Pneumatic Induction cable Stripper Machine that Stripping inner core of sheathed wire or single wire , It is controlled by Induction and stripping length is adjustable.If the wire touches the induction switch, the machine will peel off automatically, It has the advantage of simple operation and fast stripping speed, It’s Greatly Improved stripping speed and save labor cost.

Advantage

1. Extremely short cycle times.

2. No blade change necessary.

3. Strips very short cables.

4. Simple machine operation.

5. Robust & reliable.

Product Parameters

Model

SA-2015D

Wire Size Range

0.03 – 2.08 mm2 (32 – 14 AWG)

Max. Outer Cable Diameter

3.2 mm

Stripping Length Increments

Full strip: 0.5 mm    Partial strip: 2 mm

Precision of Diameter Setting

0.01 mm

Max. Strip Length

20 mm

Cycle Time

approx. 0.3s

Dimensions (L x W x H)

265 x 70 x 135 mm
