Wire harnesses are the vital nervous system of modern electronic and electrical products, widely applied in automotive, home appliance, new energy, industrial automation, aerospace and other industries. With the rapid upgrading of global manufacturing and the growing demand for precision wiring assemblies, professional wire harness processing equipment has become an indispensable core production asset for wiring factories, electronic manufacturers and OEM suppliers worldwide.
If you are a factory owner, procurement manager, production engineer or distributor looking for reliable wire harness processing machinery, understanding the full range of equipment types, functional advantages, production application scenarios and selection standards will help you optimize production efficiency, reduce labor costs and improve harness product consistency. This article will give you a comprehensive overview of mainstream wire harness processing equipment in the global market.
Main Types of Wire Harness Processing Equipment
1. Wire Cutting and Stripping Machine

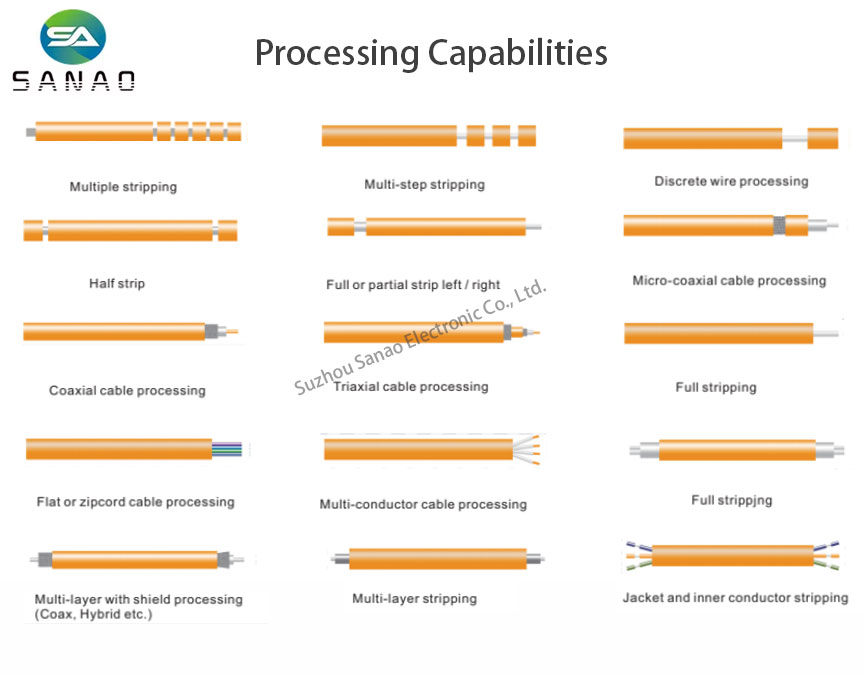

Wire cutting and stripping machine is the basic equipment in wire harness processing, mainly used for fixed-length cutting, outer skin stripping, inner core wire stripping of various electronic wires, power cords and multi-core cables.
Fully automatic models support one-key setting of wire length, stripping length and segmented stripping, suitable for mass production of RV wire, UL wire, silicone wire, braided wire and other specifications. It replaces manual cutting and stripping, greatly improving dimensional accuracy and production speed, and is the standard configuration for every wiring harness factory.
2. Terminal Crimping Machine

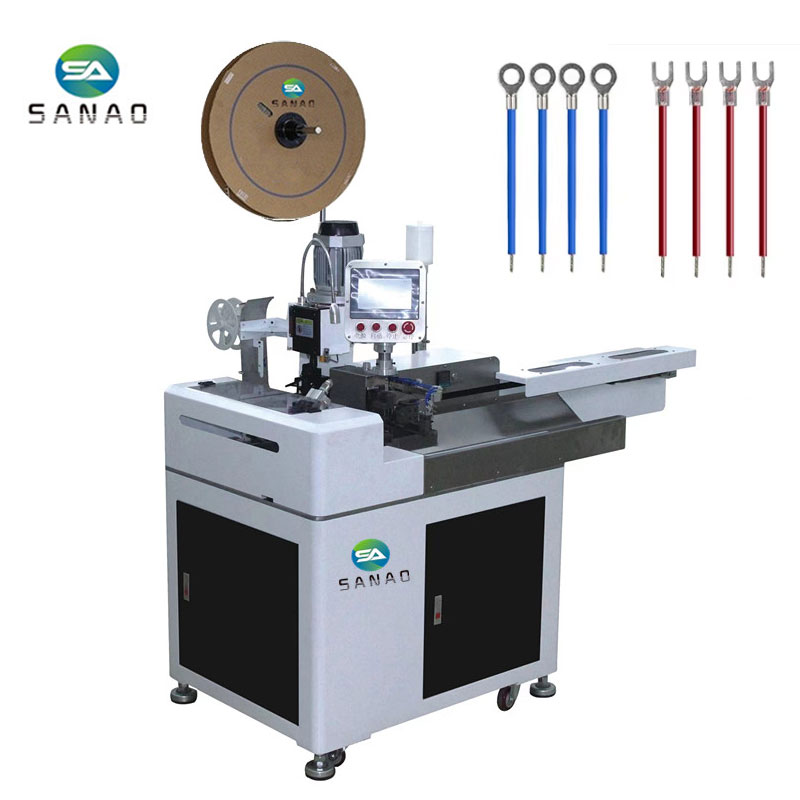

Wire crimping machine is used to crimp various terminals to the stripped wire ends, realizing the electrical connection between wire and terminal.
It includes semi-automatic crimping machines and fully automatic continuous crimping machines. It is compatible with phosphor copper terminals, brass terminals, connector pins and other types, widely used in automotive wiring harness, household appliance internal wiring, connector assembly production. High-precision crimping ensures tensile force and electrical conductivity, avoiding poor contact and virtual connection problems.
3. Wire Tinning Machine
Wire end tinning is an essential process for anti-oxidation and easy soldering of wire ends. Automatic wire tinning machine completes wire end dipping tin automatically, with uniform tin layer, no insufficient tin or excessive tin overflow.
It is suitable for single-strand wire, multi-strand stranded wire and flexible wire harness tinning, commonly matched with cutting stripping machine to form stripping and tinning integrated production line, which is widely required in electronic wiring, battery lead wire and small household appliance wiring processing.
4. Wire Twisting Machine
After wire stripping, core wire dispersion often occurs. Wire twisting machine automatically twists scattered core wires into a tight strand, which is convenient for subsequent tinning, crimping or plug-in assembly.
It effectively solves the problems of messy core wires and difficult manual arrangement, improves the yield of post-process processing, and is a necessary supporting equipment for high-quality fine wire harness production.

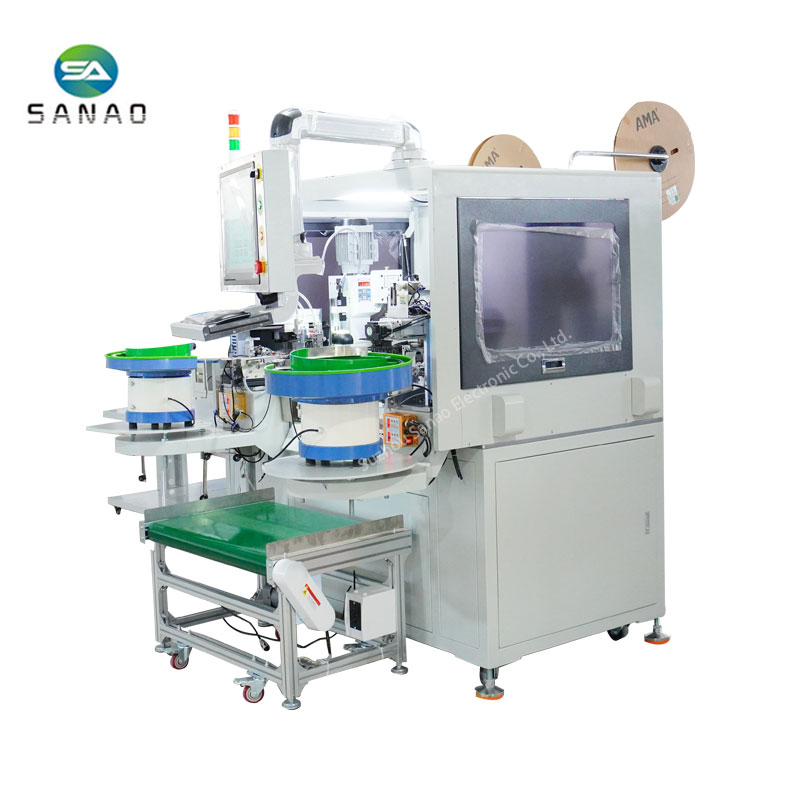

5. Fully Automatic Wire Harness Assembly Machine
Integrating cutting, stripping, twisting, tinning, crimping and inserting, the fully automatic wire harness assembly machine realizes one-stop forming of finished wiring harness. It is suitable for standardized mass production of medium and small gauge wires, greatly reducing manual intervention, stable product consistency and obvious cost advantage for large-scale orders.
6. Auxiliary Testing Equipment
Supporting equipment such as wire harness continuity tester, terminal tensile tester and insulation resistance tester is used to detect poor crimping, open circuit, short circuit and unqualified tensile force, ensuring 100% quality inspection of outgoing harness products and meeting international industry quality standards.
Application Industries of Wire Harness Processing Equipment
Automotive Industry: Automobile internal wiring harness, new energy vehicle high-voltage wire, charging pile wiring processing.
Home Appliance Industry: Refrigerator, air conditioner, washing machine, small household appliance internal connecting wire.
New Energy Industry: Lithium battery connecting wire, energy storage equipment wiring, photovoltaic wiring harness.
Industrial Automation: Sensor wiring, equipment control line, robot internal harness.
Electronic Communication: Network cable, data cable, communication equipment internal wiring assembly.
Why Choose Automatic Wire Harness Processing Equipment
High Efficiency: Far higher output than manual operation, suitable for mass orders and peak production.
High Precision: Accurate control of cutting length, stripping position and crimping dimension, low error rate.
Cost Saving: Reduce labor dependence, long-term production significantly lowers comprehensive manufacturing cost.
Stable Quality: Standardized processing avoids human operation errors, consistent batch products.
Wide Compatibility: One machine adapts to multiple wire gauges and terminal specifications, flexible for multi-style production.
How to Select Suitable Wire Harness Processing Machinery
1.Confirm your main processing wire range: wire diameter, wire type, single-core or multi-core.
2.Clarify production demand: small batch customized production or large-scale standardized mass production.
3.Match required processes: only cutting stripping, or need crimping, tinning, twisting integrated processing.
4.Focus on machine stability, after-sales service and spare parts supply, especially for long-term overseas use.
5.Prefer equipment that supports parameter customization, multi-language operation interface and easy maintenance.
Conclusion
With the continuous development of global intelligent manufacturing, automated and intelligent wire harness processing equipment has become the mainstream trend of the wiring industry. Whether you are a small and medium-sized wiring factory expanding production, a trading company looking for high-quality machinery suppliers, or an industrial equipment distributor expanding product lines, complete series of wire harness processing machines can meet your diversified production and procurement needs.
Suzhou Sanao Electronic Co., Ltd. focus on R&D, production and customization of full-set wire harness processing equipment, providing stable quality, cost-effective machinery and one-stop solution services. Welcome global customers to inquire about product parameters, factory prices and customized solutions.
