Full automatic multi core wire stripping cutting machine

Short Description:

Processing wire range: Max. Process 14MM outer diameter ,SA-H03 adopted 16 wheel belt feeding ,Servo blades Carrier with English color display, Machie is very easy to operate , Directly setting cutting length , Outer jacket strip length and inner core strip length , Machine will Automatic Stripping outer jacket and inner core at one time, Jacket Stripping lengths is Head 10-120mm; Tail 10-240mm, Length It’s Greatly Improved stripping speed and i save labor cost.

Send email to us

Product Detail

Product Tags

Product Video

Product Introduction

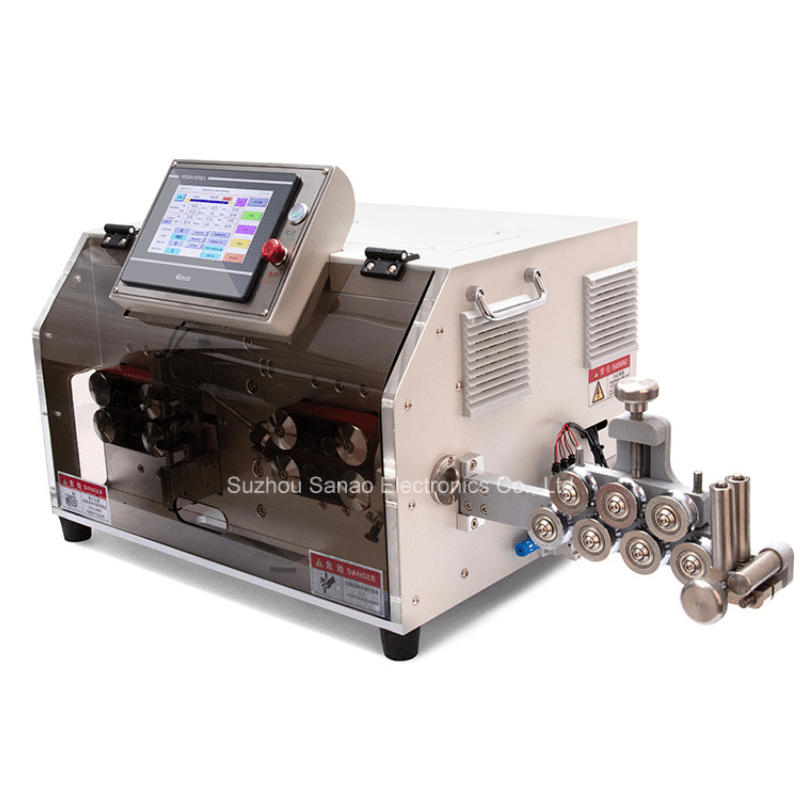

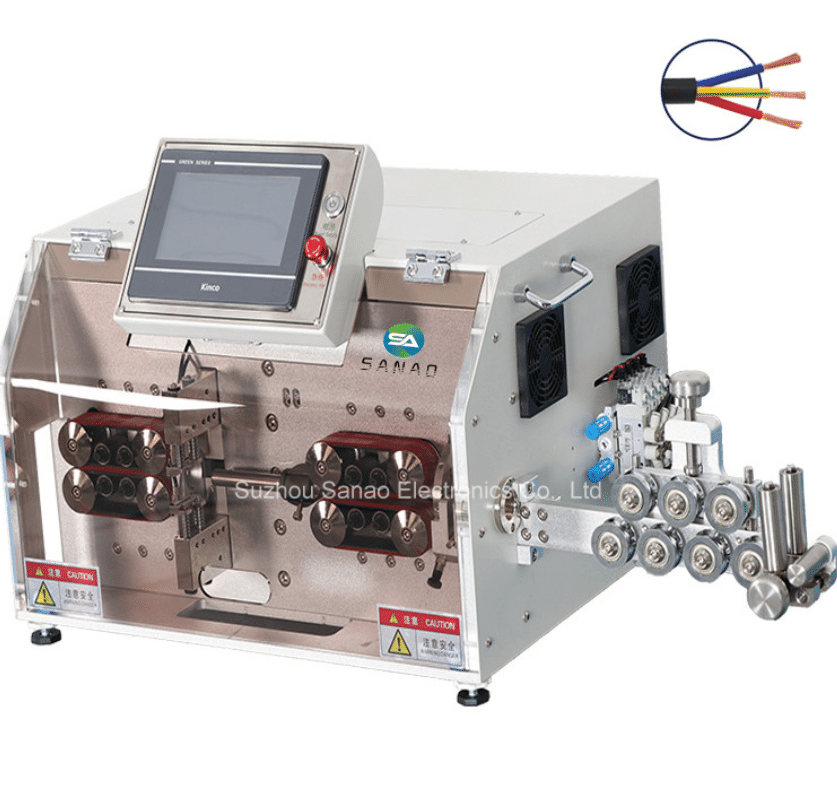

Full automatic multi core wire stripping cutting machine

SA-H03

Processing wire range: Max. Process 14MM outer diameter ,It’s adopted 16 wheel belt feeding ,Servo blades Carrier with English color display, Machie is very easy to operate , Directly setting cutting length , Outer jacket strip length and inner core strip length , Machine will Automatic Stripping outer jacket and inner core at one time, Jacket Stripping lengths is Head 10-120mm; Tail 10-240mm, Length It’s Greatly Improved stripping speed and i save labor cost.

Advantage

1. High precise. Program upgrade, more refined accessories, higher processing accuracy.
2. High quality. Adopt intelligent digital photo electric technology and imported accessories to improve service life.
3. High intelligence. Menu-type dialogue control system, simple setting of each function, can save 100 kinds of processing data.
4. Powerful. 16 wheel drive, step time motor, servo turret, belt feeding, no indentation and no scratches.
5. Easy to operate. PLC LCD screen operation, full computer control, clear and easy to understand, extensive design and production.

Product Parameters

Model	SA-H03	SA-H07
Conductor Cross-Section	4-30mm²	10-70mm² ;
Cutting Length	1-99999mm	200-99999mm
Cutting Length Tolerances	≤(0.002*L) mm	≤(0.002*L) mm
Jacket Stripping Length	Head 10-120mm; Tail 10-240mm	Head 30-200mm; Tail 30-150mm
Inner Core Stripping Length	Head 1-120mm; Tail 1-240mm	Head 1-30mm; Tail 1-30mm
Conduit Diameter	Φ16mm	Φ25mm
Production Rate	Single wire :2300pcs/h Sheath wire :800pcs/h (base on wire and cutting length)	single wire : 2800pcs/h Sheath wire 800pcs/h (base on wire and cutting length)
Display Screen	7 inch touch screen	7 inch touch screen
Drive Method	16 wheels drive	32 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable	Belt feeding wire, no indentation on cable
