1.5T / 2T Mute Terminal Crimping Machine

Short Description:

SA-2.0T,1.5T / 2T mute terminal crimping machine ,our models ranging from 1.5 to 8.0T,Different terminal different applicator or blades ,so Just change the applicator for different terminal ,Machine have automatic feeding terminal function , Just put the wire ento terminal, then press foot switch ,our machine will start crimping terminal automaticly , It’s Greatly Improved stripping speed and save labor cost.

Send email to us

Product Detail

Product Tags

Product Video

Product Introduction

1.5T / 2T Mute Terminal Crimping Machine

SA-2.0T,1.5T / 2T mute terminal crimping machine ,our models ranging from 1.5 to 8.0T,Different terminal different applicator or blades ,so Just change the applicator for different terminal ,Machine have automatic feeding terminal function , Just put the wire ento terminal , then press foot switch ,our machine will start crimping terminal automaticly , It’s Greatly Improved stripping speed and save labor cost.

Advantage

1. Semi-automatic terminal crimping machine.

2. Built-in frequency converter, high speed and low noise.

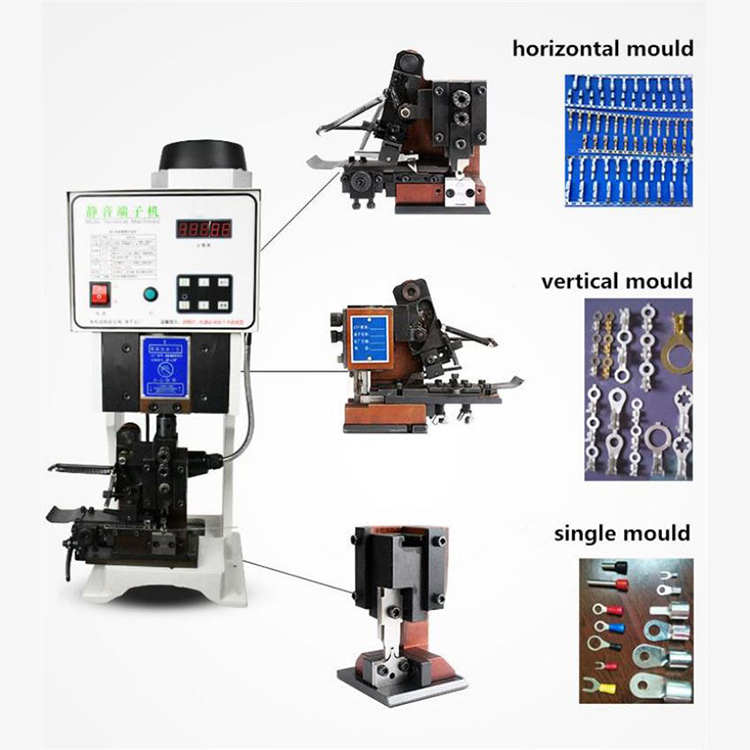

3. One machine is suitable for various terminals, very easy to change mold.

4. Support manual mode and automatic mode, you can adjust the machine easily in manual mode.

5. LED display will show how many terminals have been crimped.

6. Speed is adjustable, crimping die designed according to your requirement.

Product Parameters

Model	SA-1.5T	SA-2.0T	SA-3.0T	SA-4.0T	SA-6.0T	SA-8.0T
Crimp Force	1.5Ton	2.0Ton	3.0Ton	4.0Ton	6.0Ton	8.0Ton
Stroke	30mm (custom avaliable)
Power Supply	110/220VAC,50/60Hz
Power	550W	750W	1100W	1500W	2200W	3000W
Weight	38kg	55kg	59kg	96kg	165kg	169kg
Dimensions	222560cm	242765cm	242765cm	312175cm	383185cm	383185cm
