Full automatic crimping waterproof plug seal inserting machine

Short Description:

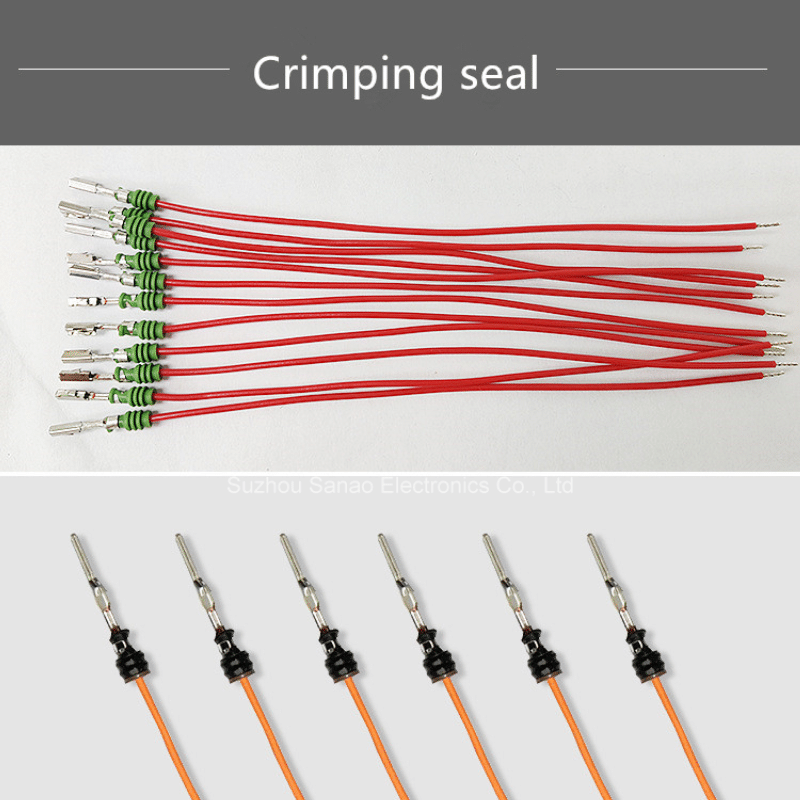

SA-FSZ331 is Fully automatic wire terminal crimping and seal insertion machine,one head stripping seal inserting crimping , the other head stripping twisting and tinning , It adopts Mitsubishi servo that one machine total have 9 servo motors,so stripping, rubber seals inserting and crimping very accurate,Machine with English color screen is very easy operate,and the speed can reach 2000 pieces/hour.it’s Improved wire process speed and save labor cost.

Send email to us

Product Detail

Product Tags

Product Video

Product Introduction

SA-FSZ331 is Fully automatic wire terminal crimping and seal insertion machine,one head stripping seal inserting crimping , the other head stripping twisting and tinning , It adopts Mitsubishi servo that one machine total have 9 servo motors,so stripping, rubber seals inserting and crimping very accurate,Machine with English color screen is very easy operate, the speed can reach 2000 pieces/hour.it’s Improved wire process speed and save labor cost.

Advantage

1. Adopts Mitsubishi servo,Machine is stable and accurate.
2. Adopt Japanese-made vibrator feeding system.
3. Equipped with a gravity-free synchronous pay-off rack.
4. Can be equipped with pressure monitoring system.
5. Can be equipped with D CCD imaging system.
6. Can be equipped with upper software operating system.
7. Equipped with a safety cover to avoid accidents when the machine is running.

Products Parameter

Model	SA-YJ600
Use specifications	0.5mm²-2.5mm² (terminal conduit length below 12mm)
Use specifications	4.0mm² (The length of terminal conduit is less than 10mm)
Detection device	terminal supply detection lack of material
Drive mode	motor/imported ball screw
Control method	touch screen and programmable controller, MOONS’ drive
Clamping device	motor driven, clamping force program control
Crimping device	motor driven, program control of crimping force
Storage capacity	100 kinds of cable crimping data
Pneumatic device	SMC solenoid valve, SMC cylinder
