Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao Featured Image
  • Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao
  • Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao

Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

Assume full responsibility to satisfy all needs of our clients; achieve continual advancements by endorsing the expansion of our purchasers; turn into the final permanent cooperative partner of clientele and maximize the interests of clients for Shielded Wire Braided Wire Split Brush Twist Machine , Pre-Insulated Ring Terminals Machine , Crimping Machine For Cable , In addition, we would properly guide the customers about the application techniques to adopt our products and the way to select appropriate materials.
Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao Detail:

Product Video

Product Introduction

Processing wire range: Max. Process 14MM outer diameter or 7 core sheathed wire,  SA-H03 is a economical Automatic sheathe wire strip cut machine, Stripping outer jacket and inner core at one time, It’s adopted 8 wheel belt feeding with English display that it’s more Easier to operate than the keypad model, Machine Widely used in samall sheathed wire and multi core wire, It’s Greatly Improved stripping speed and save labor cost.

Product Display

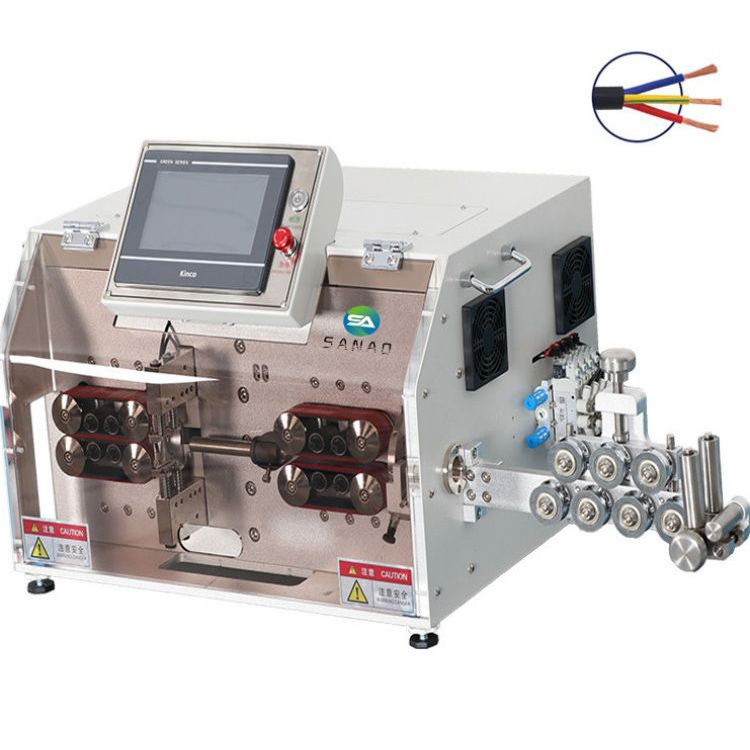

sheathed wire strip

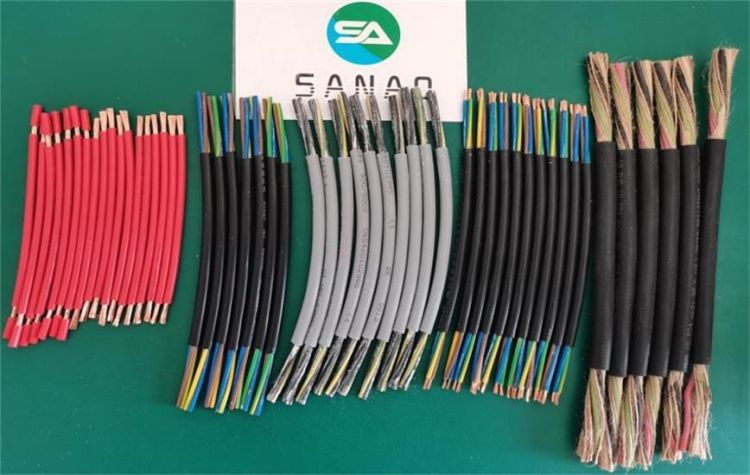

stripping machine 2

Advantage

1. 7 inch touch screen LCD screen display: 7 inch touch screen in Chinese and English, automatic computer program design, simple and clear operations,Our machine have 99 kinds of programs, It can be set according to different stripping requirements, Meet customers’ various stripping requirements.

2. Many kinds of processing methods: Stripping outer jacket or stripping outer jacket and inner core at one time .

3. Motor: Copper core stepper motor with high precision, low noise, precise current which controls motor heating well, longer service life.

4. 16 wheel belt feeding: 16 wheel belting feeing wire that can’t hurt wire, And the belt feeding is more accurate.

5. High quality blade: High-quality raw materials with no burr free incision are durable, wear-resistant and have a longer service life.

Product Parameters

Model SA-H03 SA-H07
Conductor Cross-Section 4-30mm² 10-70mm² ;
Cutting Length 1-99999mm 200-99999mm
Cutting Length Tolerances ≤(0.002*L) mm ≤(0.002*L) mm
Jacket Stripping Length Head 10-120mm; Tail 10-240mm Head 30-200mm; Tail 30-150mm
Inner Core Stripping Length Head 1-120mm; Tail 1-240mm Head 1-30mm; Tail 1-30mm
Conduit Diameter Φ16mm Φ25mm
Production Rate Single wire :2300pcs/h
Sheath wire :800pcs/h (base on wire and cutting length)		 single wire : 2800pcs/h
Sheath wire 800pcs/h (base on wire and cutting length)
Display Screen 7 inch touch screen 7 inch touch screen
Drive Method 16 wheels drive 32 wheels drive
Wire Feed Method Belt feeding wire, no indentation on cable Belt feeding wire, no indentation on cable
Product detail pictures:

Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao detail pictures

Factory wholesale Electric Automatic Wire Stripping Machine - Full Automatic Multi Core Wire Stripping Cutting Machine Max.14mm – Sanao detail pictures
