Automatic Tubular Insulated Terminal Crimping Machine

Short Description:

SA-ST100-PRE

Description: This series have two model one is one end crimping , The other is two end crimping machine ,automatic crimping machine for bulk Insulated terminals. It is suitable for crimping loose / Single terminals with vibration plate feeding,The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.

Send email to us

Product Detail

Product Tags

Product Video

Feature

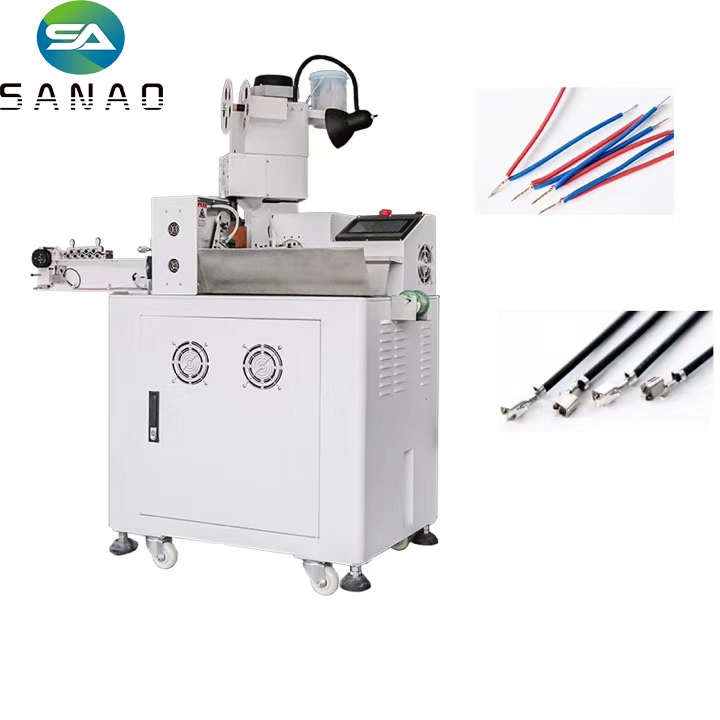

Full automatic wire cutting terminal crimping tin dip machine

Full automatic single /double Wire cutting and striping terminal crimping tin machine, single head automatic crimping terminal ,the other head stripping twisting tin dip machine for Copper wires. It’s Greatly Improved stripping speed and save labor cost.

1.Micro-computer controlled system, high accuracy wire cutting stripping.

2.Wire cutting, stripping and crimping are completed one time.

3.Fast speed, high efficiency, easy operation

4.Function: wire cutting, single-end stripping, double-end stripping, single-end twisting, 5.single-end crimping, multi-section stripping.

6.LCD screen, high-definition, easy to operate.

Model	SA-CZ100	SA-CZ200	SA-CZ300	SA-CZ400	SA-CZ500	SA-CZ600
Product Features	Wire cut off, double-ended stripping, crimping on one end, twisted wire on one end
Features	Regular	Two wire	Thin wire	Gold pin	Thick wire	Consolidation wires

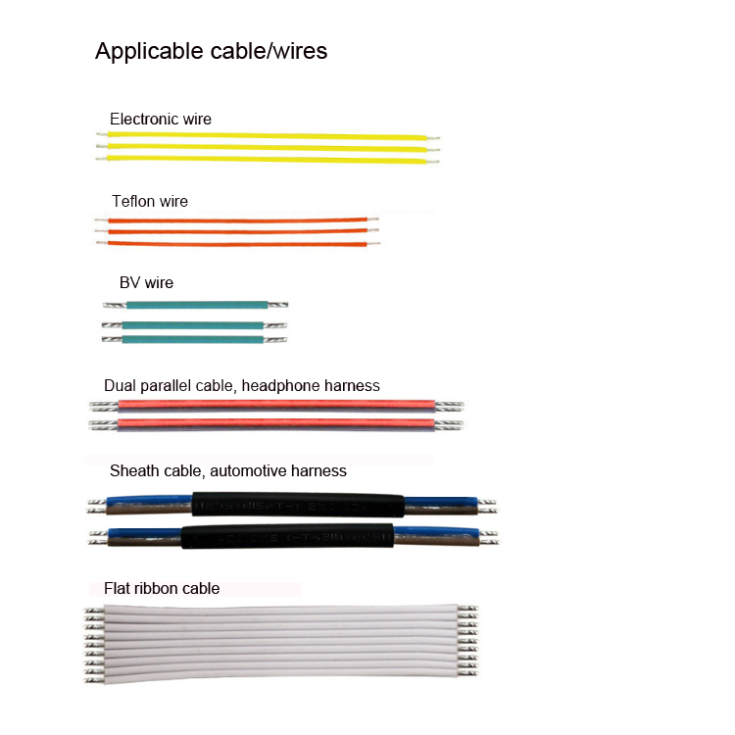

Available Wire Size	AWG18-28#	AWG18-28#	AWG20-32#	AWG18-28#	2.5mm2	AWG18-28#
Cutting Length	35-999mm
Length Tolerance	±0.2%*L
Stripping Length	0-10mm
Twisting Length	2-20mm
Machine Production Rate	About 4200 pcs/h
Detection Device	Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection
Air Connection	0.5-0.7MPa
Power Supply	110/220VAC,50/60Hz
Weight	About 260kg
Dimensions	13060200cm
